Generating GIS-compliant utility maps with PIX4Dcatch

We spoke with Gabriel Armas, the Asset Systems Development Manager in the university’s Planning, Operations, and Construction department. His work focuses on improving how asset records are stored and maintained, as well as developing better systems for managing the university’s asset base. Gabriel helps to ensure campus infrastructure is accurately documented and efficiently managed.

A smarter way to locate underground utilities

Facility teams often rely on as-built plans to locate underground utilities. However, these documents can sometimes be incomplete or lack the detail needed to accurately pinpoint them. To explore a better solution, Gabriel collaborated with the irrigation team to test a new approach: using PIX4Dcatch with an RTK device on a small-scale irrigation project involving water pipe installation.

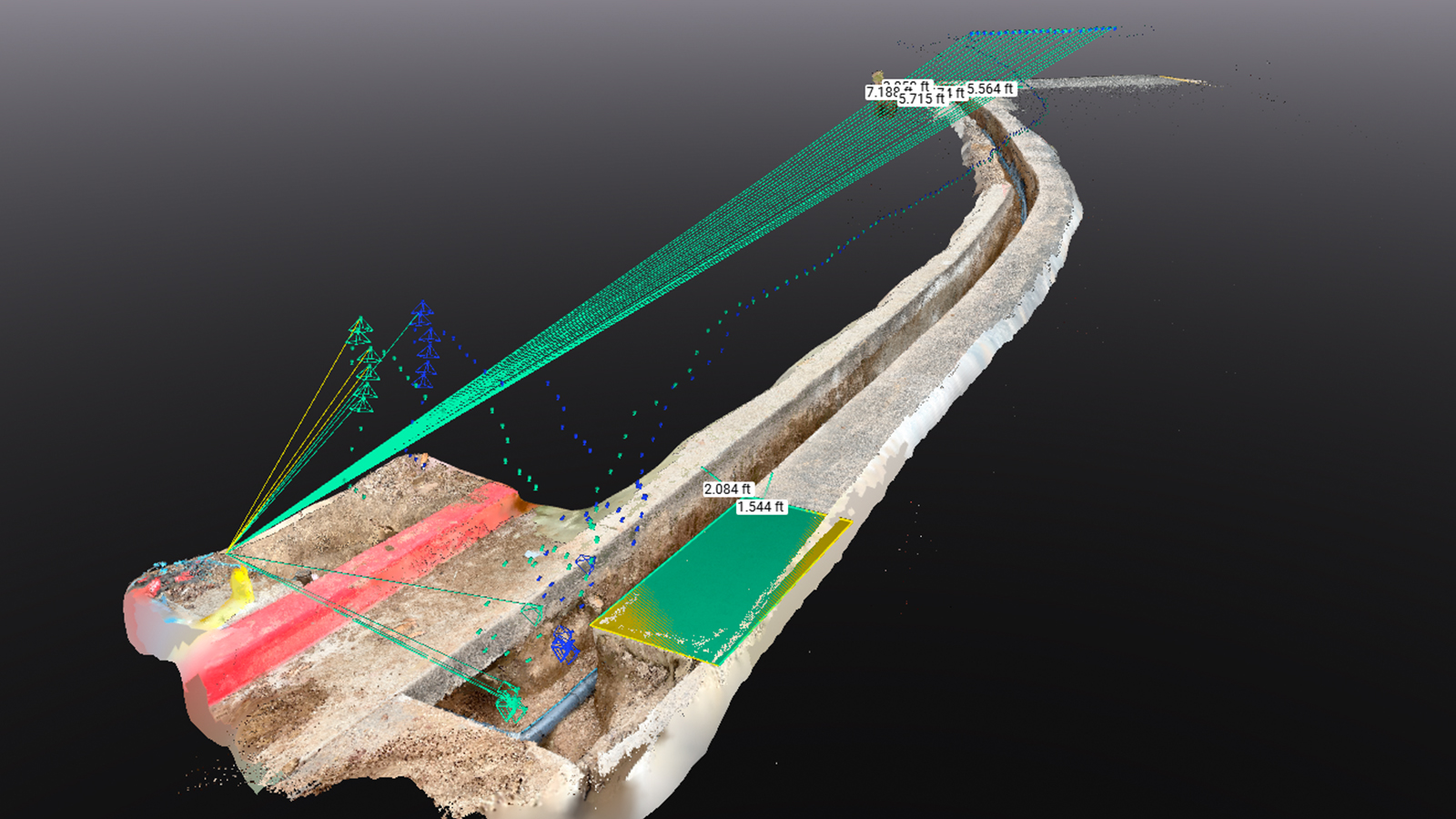

3D reconstruction of a utility trench captured with PIX4Dcatch and RTK, showing measured distances and camera positions used for photogrammetry

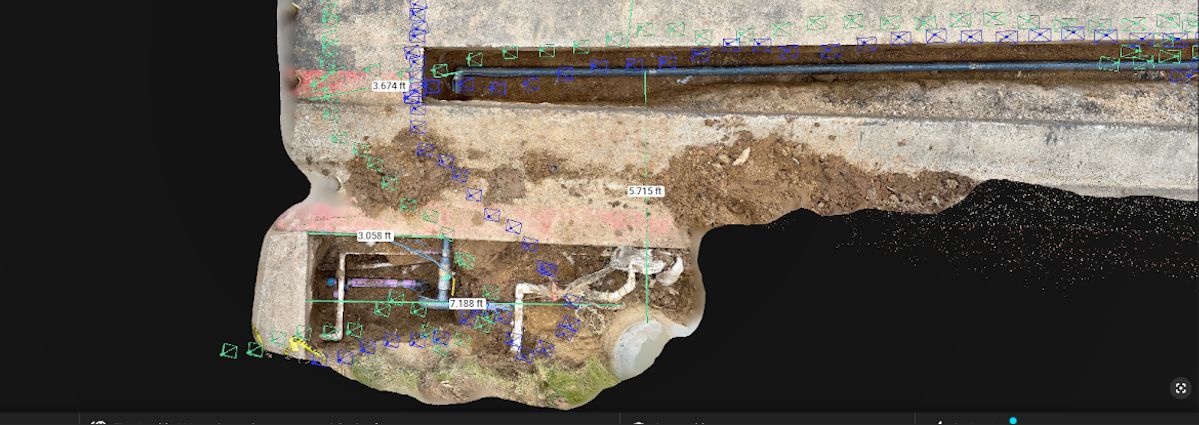

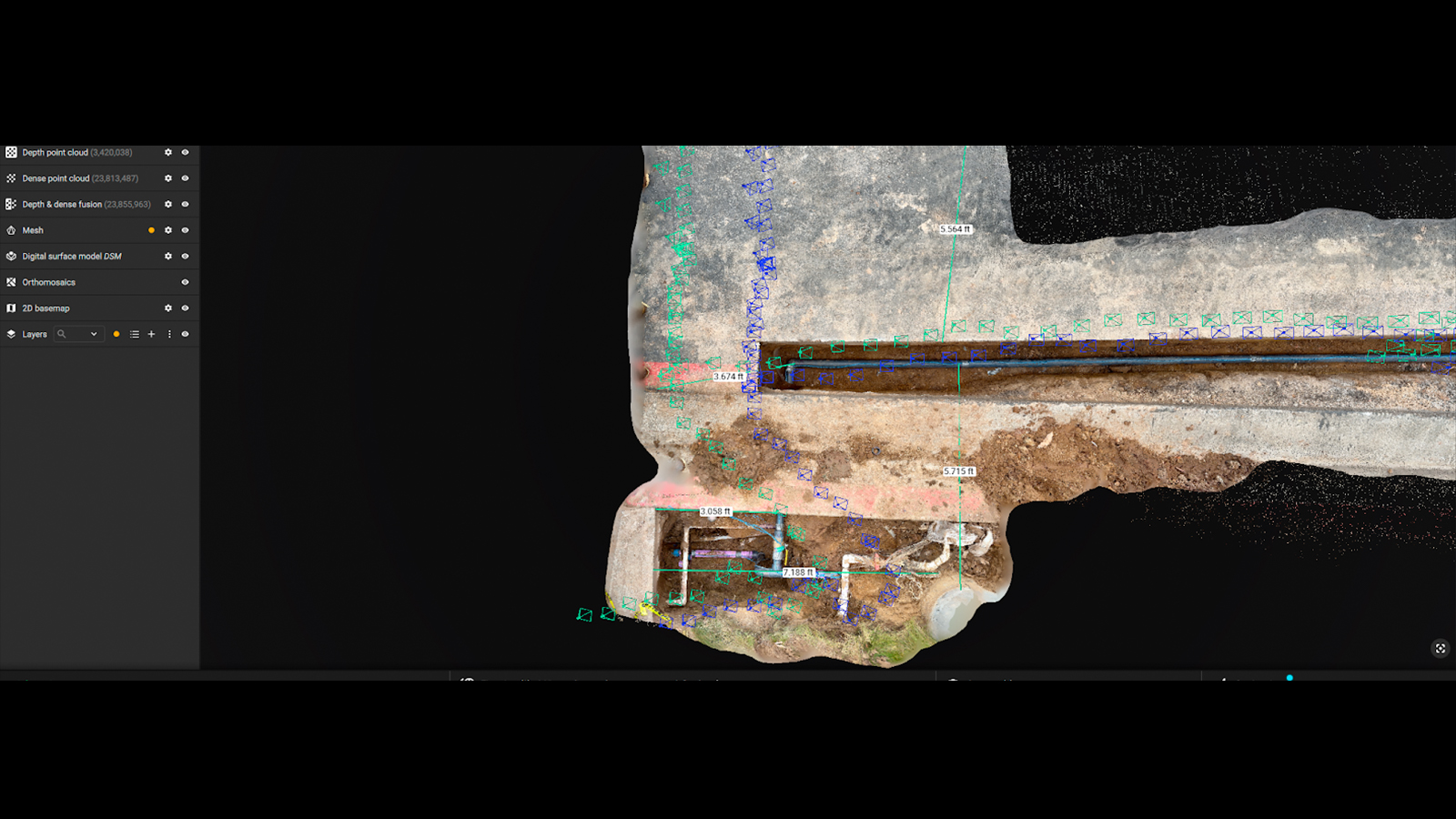

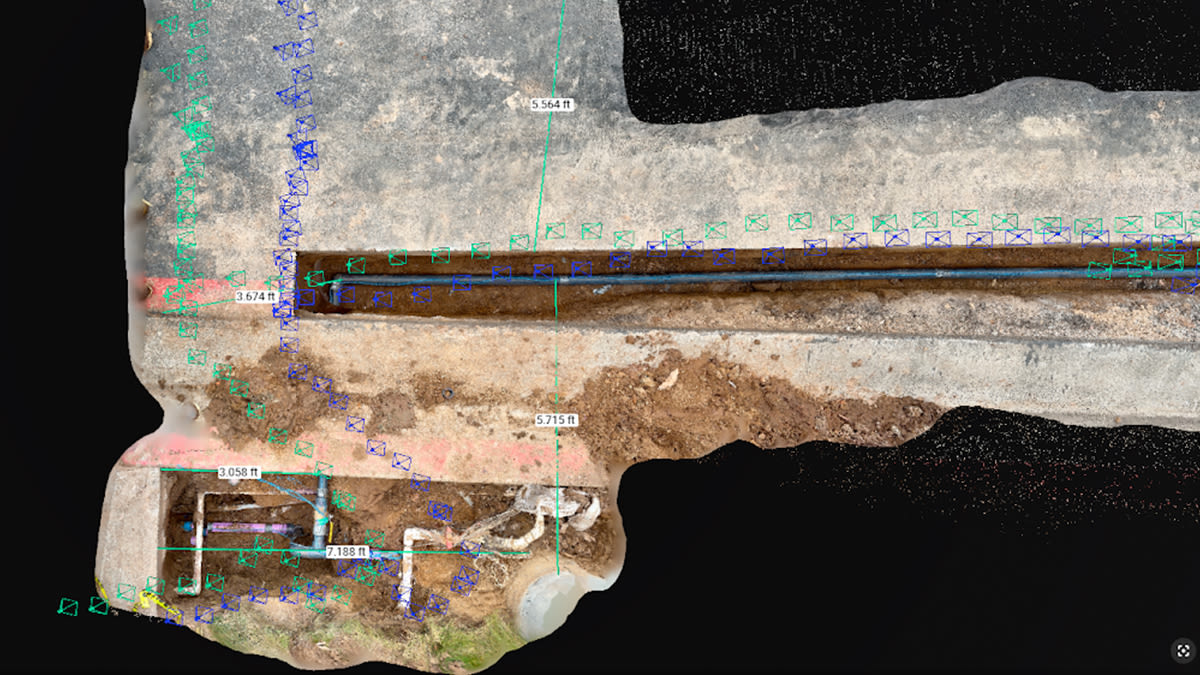

Top-down view of the project site in PIX4Dmatic, displaying the dense point cloud, image alignment, and measurement annotations of buried utilities

The goal was to develop a reliable, tech-enabled method to track, audit, locate, document, and measure critical underground utilities during maintenance, repairs, and new construction. By leveraging the global GNSS reference frame, Gabriel set out to demonstrate that even a compact setup—a smartphone paired with PIX4Dcatch and RTK—could significantly reduce uncertainty and improve utility documentation in the field.

A streamlined workflow for underground utility mapping

The challenge we set out to address was a common one: undocumented or poorly documented underground utilities. To solve this, we used the PIX4Dcatch app on a smartphone equipped with LiDAR and RTK-enabled GNSS to collect accurate geospatial data. The captured imagery was processed using PIX4Dmatic and PIX4Dsurvey, and the resulting outputs were imported into a Geographic Information System (GIS) using the open-source platform QGIS.

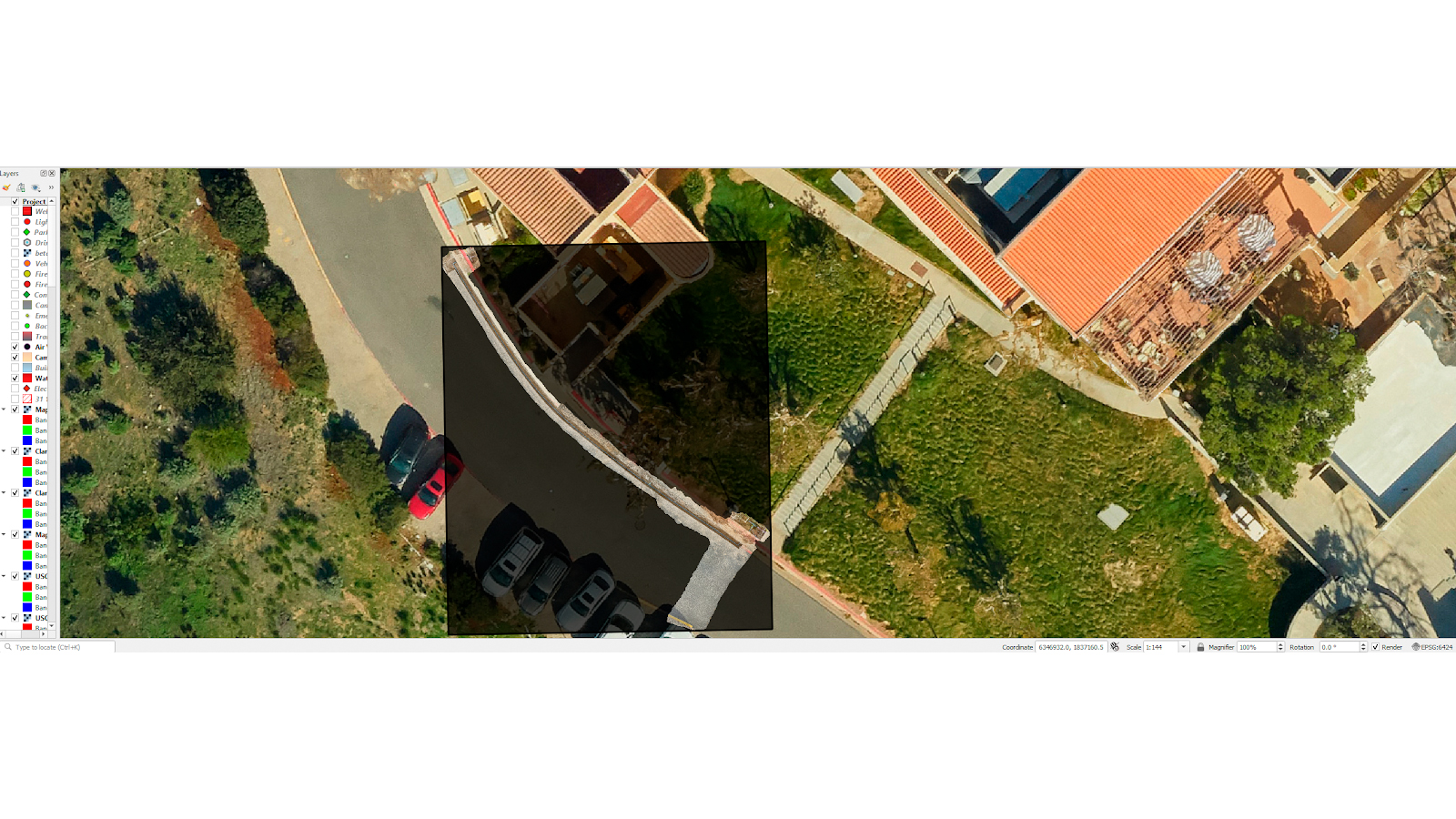

Overlay of the processed utility trench model on aerial basemap imagery for geospatial context and alignment with existing site features

The entire process—from data collection to field verification—took approximately 6 hours, including an additional hour to produce a final printed map. This streamlined workflow proved how accessible and efficient utility mapping can be with the right tools.

Creating GIS-compliant utility maps with PIX4Dcatch

The project demonstrated how easily 2D and 3D data can be collected for subsurface utility installations, creating a reliable utility map for future reference. The goal was to test the ability to map a newly installed utility, and we succeeded—producing a GIS-compliant dataset suitable for long-term use. In California, for example, GIS shapefiles are required for new or discovered utilities, and this method ensures that contractors, surveyors, or engineers remain compliant with local standards.

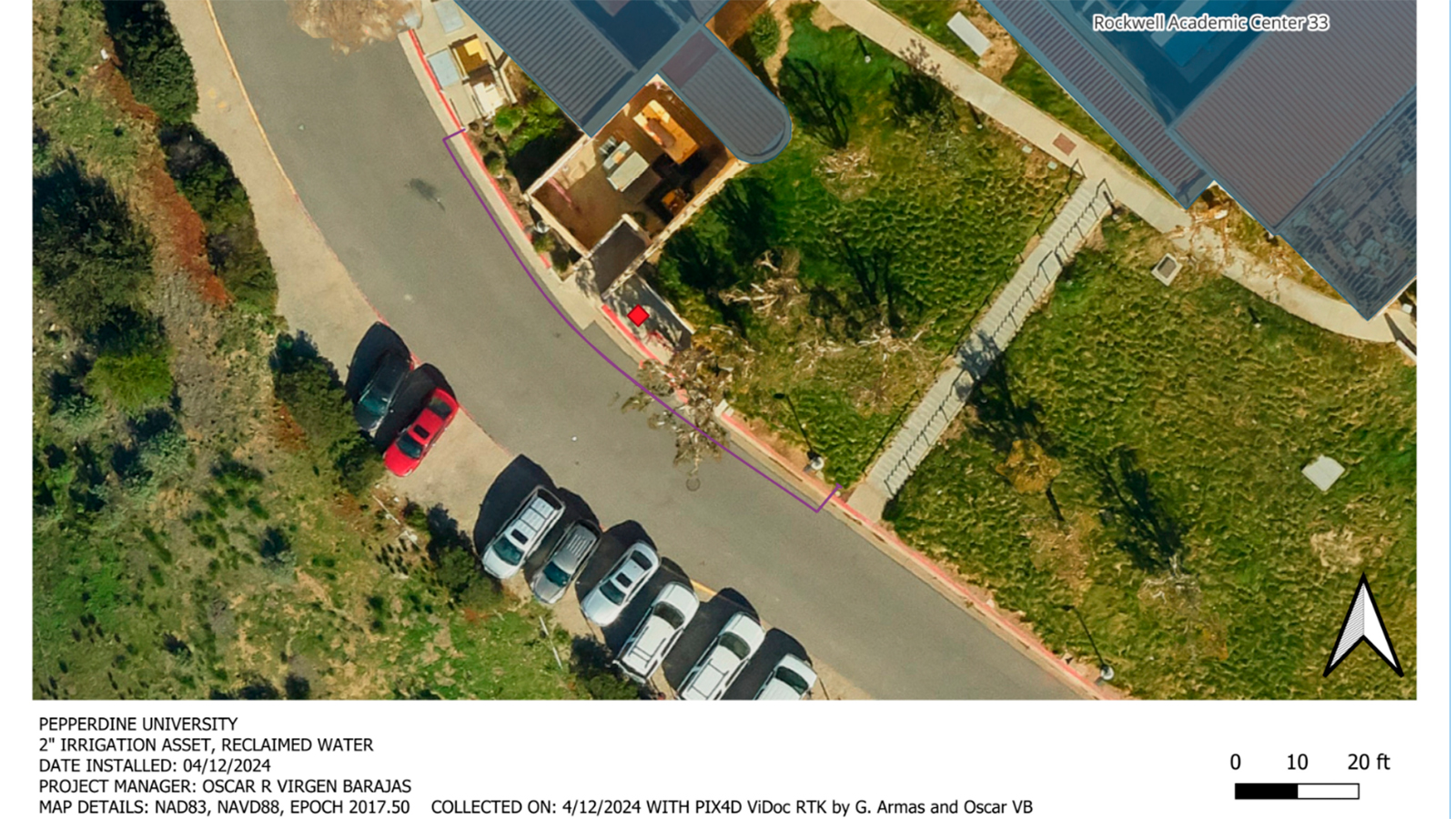

Final printed map showing the documented irrigation line at Pepperdine University, complete with asset details, coordinates, and collection metadata for compliance and archival

One of the most compelling advantages of this approach is the use of common, accessible hardware—a smartphone! Paired with RTK technology, this method proved to be an easy-to-use, highly effective solution for surveying and documenting underground infrastructure.

“PIX4Dcatch with an RTK device is an easy way to collect utility installations. I liked the ease of use and fast processing. From collecting to printing out a map, this effort transforms how to collect utility installations for construction or facility operations. PIX4Dcatch leverages the global utility, which is the GPS/GNSS reference frame, to map vital utility information once collected and mapped with analog hand tools." - Gabriel Armas, Asset Systems Development Manager, Planning, Operations, and Construction, Pepperdine University
