Choose an RTK device

The future of single point measurement with 3D scanning

Product Image

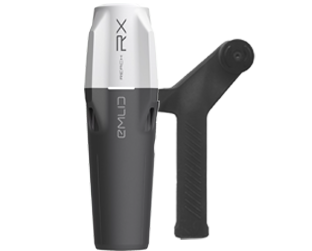

Emlid
Reach RX2

  • Weight: 280 g
  • Size: 172 mm x 51 mm x 51 mm
  • Temperature range: -20 to +65 °C (-4 to 149 °F)
  • IP rating: IP68 (dust proof, water proof)
  • Battery: (7000mAh) 16 hours of work
  • RTK precision:
    • Horizontal: 7 mm + 1 ppm
    • Vertical:  14 mm + 1 ppm
  • Signal tracking:
    • GPS: L1C/A, L2C
    • QZSS: L1C/A, L1C/B11,L2C, L5
    • GLONASS: L1OF, L2OF
    • BeiDou: B1I, B1C, B2a, B3I
    • Galileo: E1-B/C, E5a, E6
    • NavIC: L1-SPS Data, L5-SPS
  • Data protocols: NTRIP, RTCM 3
  • Position output: NMEA
Trimble Catalyst

Trimble® Catalyst™
DA2

  • Weight: 330 g
  • Size: (Diameter x Depth) 128 x 55 mm
  • Temperature range: -20 to +65 °C (-4 to 149 °F)
  • IP rating: IP65 (dust proof, rain proof)
  • Battery: Powerbank (sold separately)
  • RTK precision:
    • Horizontal: 1 cm + 0.5 ppm RMS
    • Vertical: 2 cm + 0.5 ppm RMS
  • Signal tracking:
    • GPS: L1C/A, L2C, L5
    • GLONASS: L1C/A, L2C/A
    • SBAS: L1C/A, L2C, L5
    • BeiDou: B1L, B1C, B2A
    • Galileo: E1, E5A
    • QZSS: L1C/A, L2C, L5
    • NNavIC (IRNSS): L5
  • Data protocols:
    • NTRIP, VRS, RTCM 3.2 MSM, CMRx, DCOL
    • NMEA (LLH), DCOL

Important: This product is available exclusively in the EU, UK, Switzerland, and Norway.

Device

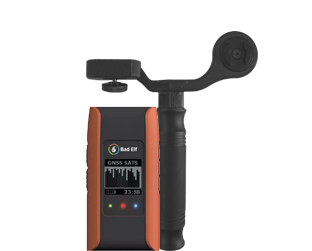

Bad Elf
Flex® mini

  • Weight:5oz / 143g
  • Size:90mm x 45mm x 32mm
  • Temperature range:–4°F to +131°F (–20°C to +55°C)
  • IP rating:IP67
  • Battery:24 hours
  • RTK precision:
    • Horizontal accuracy: 1-2 cm
  • Signal tracking:
    • GPS L1C/A, L5
    • GLONASS G1
    • Galileo E1, E5a
    • BeiDou B1i, B2a
    • SBAS WAAS, EGNOS, MSAS
    • QZSS L1
  • Data protocols:
    • RTCMv3 (RTK)
Product Image

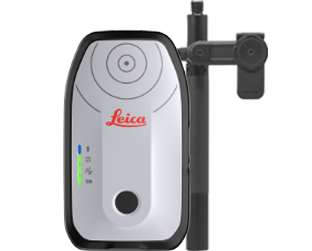

Leica
Zeno FLX100 plus

  • Weight: 319 g
  • Size: 139 mm x 80.6 mm x 31 mm
  • Temperature range: Operating: –40 to 65 °C Storage: –40 to 80 °C
  • IP rating: IP67 (Proof against water, sand and dust)
  • Battery: Internal (3.8 V / 6120 mAh)
  • RTK precision:
    • Horizontal:(Multi-frequency): 2 cm + 1 ppm*
    • Vertical: (Multi-frequency): 3 cm + 1 ppm*
  • Signal tracking:
    • GPS (L1 C/A, L2C)
    • Glonass (L1OF, L2OF)
    • BeiDou (B1l, B2l)
    • Galileo (E1B/C, E5b)
    • QZSS (L1C/A, L2C)
    • SBAS: WAAS, EGNOS, MSAS, GAGAN (L1 C/A)
  • Data protocols:
    • RTCM 3.0, RTCM 3.1, RTCM 3.2, RTCM 3.3, RTCM MSM

Important: Restrictions may apply.

Device

Topcon
CR-H1

  • Weight:440 g
  • Size:47 × 47 × 197 mm
  • Temperature range:-40ºC to 60ºC (-40ºF to 140ºF) with external power
  • IP rating:IP67 (Dust and Water)
  • Battery:Li-ion 5,800 mAh, 3.6 V
  • RTK precision:
    • Horizontal: 10 mm + 0.8 ppm
    • Vertical: 15 mm + 1.0 ppm
  • Signal tracking:
    • GPS L1 C/A, L1C, L1P, L2P, L2C
    • GLONASS L1 C/A, L1P, L2C/A, L2P, L2C
    • Galileo E1
    • BeiDou B1, B2
    • SBAS
    • WAAS/EGNOS/MSAS/GAGAN
    • QZSS L1 C/A, L1-SAIF, L1C, L2C
    • Universal Tracking Channels™: Topcon’s patented GNSS signal tracking technology
    • GNSS Antenna: Integrated helical antenna
  • Data protocols:
    • TPS, RTCM, CMR/CMR+, BINEX, NMEA

Important: Coming soon.

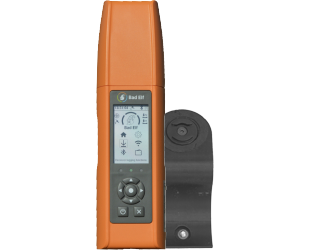

Bad Elf Flex

Bad Elf
Flex®

  • Weight: 854 g
  • Size: 254mm x 70mm
  • Temperature range: -20 to +55 °C (-4 to 131 °F)
  • IP rating: IP65
  • Battery: (12000mAh) up to 11h
  • RTK precision: Horizontal: 8 mm + 1 ppm
  • Signal tracking:
    • GPS: L1CA, L1P, L1C, L2P, L2C, L5
    • GLONASS: G1/G2/G3, P code (P1/P2)
    • SBAS: L1C/A, L2C, L5
    • BeiDou: B1i, B2i, B3i, B10C, B2A, B2B, ACEBOC
    • Galileo: E1BC, E5a, E5b, E6BC, ALTBOC
    • QZSS: L1CA, L2C, L5, L1C, LEX
    • NavIC (IRNSS): L5
  • Data protocols: Hemisphere GNSS’ ROX, RTCM v2.3 (DGPS), RTCMv3 (RTK), CMR, CMR+, Atlas

Important: This product is available exclusively in the USA.

RTK

More RTK devices will be available soon.

Frequently asked questions

What is RTK in PIX4Dcatch?

RTK, or Real-Time Kinematic, is a GPS correction technology technique that enhances the precision of position data derived from satellite-based positioning systems. Integrated with PIX4Dcatch, RTK enables users to capture geotagged images with centimeter-level accuracy in real-time by connecting to any NTRIP service. This functionality is crucial for accurate 3D photogrammetric scanning.

How much more accurate is RTK GNSS when compared to my phone’s integrated GPS?

RTK delivers precision down to the centimeter, vastly outperforming the typical 5-meter accuracy of standard smartphone GPS.

How can I purchase an RTK GNSS device?

The Emlid Reach RX scanning kit and the RTK GNSS rover are available through a selection of authorized Pix4D resellers or by directly contacting the Pix4D sales team. Availability may vary by region.

How does it work?

Attach the RTK device to your phone. Next open PIX4Dcatch and login to your Pix4D user account. Then, connect to your NTRIP service. Once connected, find an open area and you should be ready to go.
For more detailed information on how our RTK devices operate and their functionalities, please visit our Documentation.

Which devices work with RTK GNSS?

PIX4Dcatch is compatible with selected iPhones and iPads, particularly optimized for the ones with a LiDAR sensor, but not exclusively. Please visit our Documentation to see a list of compatible phones and understand how to configure your set up.

What's in the box?

Pix4D offers several ready-to-use scanning kits that combine PIX4Dcatch, and survey-grade GNSS receivers from trusted partners, check out our scanning kits
